outdoor plant optical node

Taikan's Outdoor Plant Optical Nodes are an ideal platform for delivering video (digital or analog) as well as high-speed data services over advanced hybrid fiber / coax (HFC) network. These units combine the superior proven technologies of the RF amplifier with the modular design of the fiber components, allowing Taikan's optical nodes to provide the full complement of functions required by advanced networks.




2 Port Optical node (860 MHZ or 1 ghz)

  • Two High Level Output Ports with GaAs Power Double Amplifier Module
  • Rugged Weather Resistant Outdoor Die Cast Case
  • Switchable Power Supply
  • Easy Operation with an LED Display to Show the Optical Level
  • -20 dB Level for Output Test


4 Port Optical node (860 Mhz)

  • 4 High Level Output Ports with GaAs Power Double Amplifier Modules
  • 15 A Current Capacity (Steady State) and 25 A Surge Survivabiity
  • Surge Resistant Circuitry Ensures Gain Stage Protection without Fuses and Protection from other Failure Causing Devices
  • 40-90 VAC High Efficacy Switch Mode Power Supply
  • Standard Fiber Management Tray Provides Fiber and Connector Storage for up to 6 Connector Pairs
  • Select 1,2 or 4 Return (Upstream) Path Optical Transmitters. Standard Model has 1 Receiver and 1 Return (Upstream) Transmitter
  • Local Test Points and LED Indicators on Optical Receivers and Transmitters that Simplify Installation and Maintenance
  • Optical Node Uses Fixed Value Plug-In Attenuator and Equalizer Accessories
  • Forward (Downstream) Output Test Point and Return (Upstream) Input Test Point for each Port allows for Optimum Design and Alignment
  • Reverse Transmitters Available in FP or DFB Formats

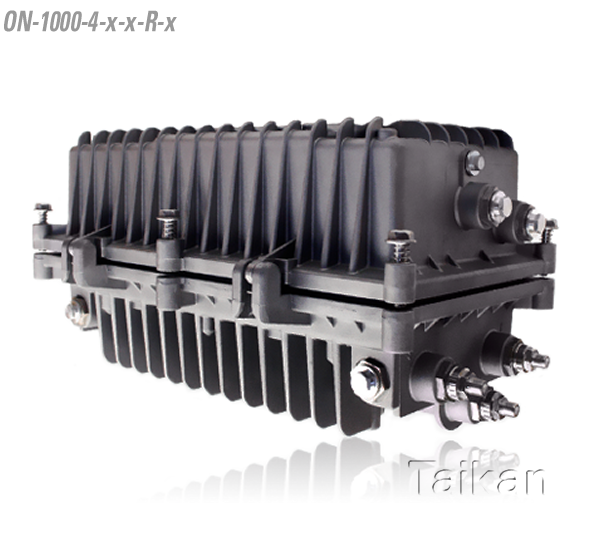

4 Port Optical node (1 ghz)

  • 4 High Level Output Ports with GaAs Power Double Amplifier Modules
  • 25 A Current Capacity (Steady State) and 25 A Surge Survivabiity
  • Surge Resistant Circuitry Ensures Gain Stage Protection without Fuses and Protection from other Failure Causing Devices
  • Two 40-90 VAC High Efficacy Switch Mode Power Supply
  • Standard Fiber Management Tray Provides Fiber and Connector Storage for up to 6 Connector Pairs
  • Select 1, 2 or 4 Return (Upstream) Path Optical Transmitters. Standard Model has 1 Receiver and 1 Return (Upstream) Transmitter
  • Local Test Points and LED Indicators on Optical Receivers and Transmitters that Simplify Installation and Maintenance
  • Optical Node Uses Fixed Value Plug-In Attenuator and Equalizer Accessories
  • Forward (Downstream) Output Test Point and Return (Upstream) Input Test Point for each Port allows for Optimum Design and Alignment
