MDU premise optical nodes

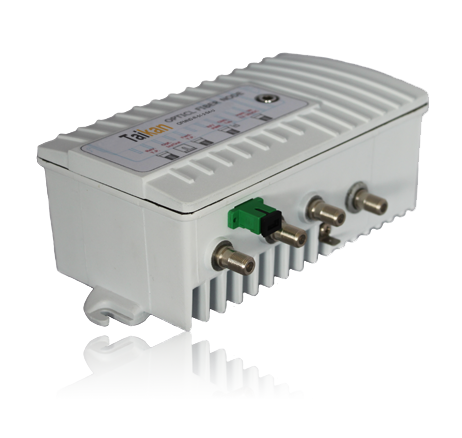

Taikan’s OFMN Series are high powered mini nodes designed for MDU or large facilities that are implementing FTTx and RFoG networks. These mini nodes are offered at 1 GHz, and are available in a wide array of return (upstream) transmitters and band splits. The OFMN is available in a WDM single fiber port version or a more economical dual port version. Each unit includes a separate power adapter that will adhere to the local requirements and a built-in LED to indicate power, optical input, and transmit status.




1 RF Port MDU Node

  • 5-1002 MHz bandwidth
  • 1 High RF Power Output Port 50 dBmV
  • 1310, 1550 or ITU CWDM Return (Upstream) Transmitter Options
  • Compact Aluminum Alloy Housing
  • Low Power Consumption
  • External Input and Test Ports
  • 6 kV Surge Protection


2 RF Port MDU Node

  • 5-1002 MHz bandwidth
  • 2 High RF Power Output 52/48 dBmV
  • 1310, 1550 or ITU CWDM Return(Upstream) Transmitter Options
  • Compact Aluminum Alloy Housing
  • Low Power Consumption
  • External Input and Test Ports
  • 6 kV Surge Protection


Product photo Gallery
